How Microscope Design Affects Usability and Imaging Performance

Author: Judith Beer

Published: 03 Aug 2026 · Last updated: 06 Aug 2026

The microscope chassis (body) defines the system's overall architecture and strongly influences sample compatibility, environmental stability, illumination setup, and workflow integration. While it does not usually dominate the total system cost, it determines many practical aspects of usability, flexibility, and overall imaging performance.

This overview explains the microscope architectures and design choices found in benchtop systems and highlights the key factors to consider when evaluating a microscope.

Upright vs Inverted Microscopes

Configuration Description
Upright microscopes
  • Compact layout with objectives positioned above the sample stage.
  • Preferred for larger specimens and fixed samples.
  • Typically simpler in design than inverted microscopes.
  • Well-suited for teaching purposes.
Inverted microscopes
  • Objectives positioned below the microscope stage.
  • Ideal for live-cell imaging and samples in aqueous media (cells, organoids, microtissues).
  • Preferred configuration for integration with micromanipulation setups.

Open-framed vs Enclosed/Boxed Designs

Configuration Description
Open-framed microscopes
  • Provide direct physical access to the sample and optical components.
  • More susceptible to environmental influences such as ambient light, temperature drift, and vibrations.
  • Generally easier to maintain and upgrade.
Enclosed/boxed microscopes
  • Shield optical components and samples from ambient light.
  • Offer partial protection from environmental fluctuations, dust and optical contaminants.
  • Enable safer laser handling and protect system optics.
  • Particularly suitable for less-experienced users and multi-user environments.

Eyepiece vs Digital-only Systems

Configuration Description
Eyepiece-based systems
  • Enable direct sample inspection and manual navigation.
  • Familiar and intuitive sample visualisation for many users.
  • More challenging to share observations with a group.
Digital-only systems
  • More ergonomic and comfortable for extended use.
  • Provide a larger effective viewing area via screen display.
  • Simplify documentation and collaboration (images are immediately available digitally).
  • Streamline automated scanning and workflow needs.
  • Not all systems support high-magnification imaging.

Mouse pancreas and connected tissues imaged with confocal microscope

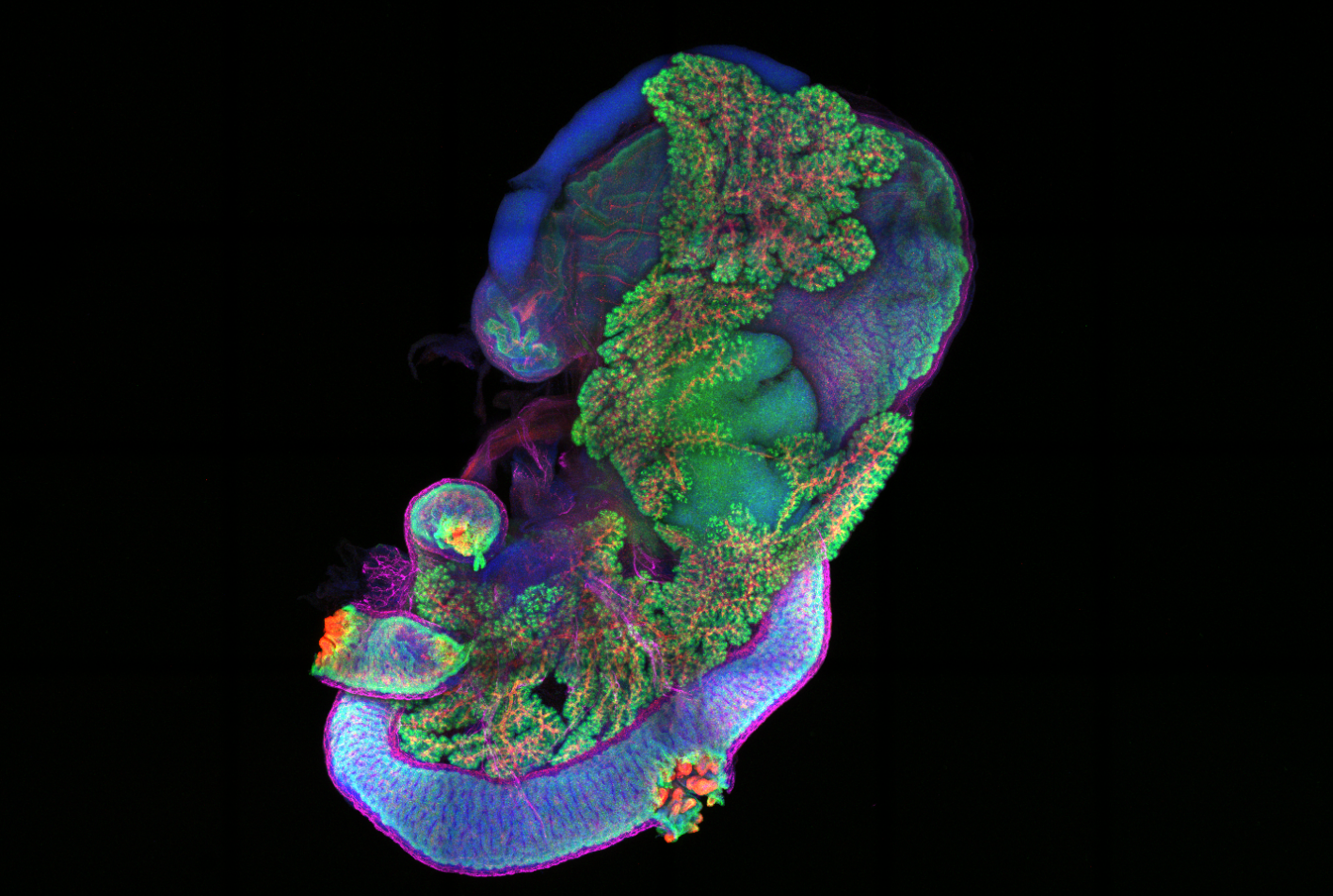

Fig. 1 — Mouse pancreas and connected tissues imaged with BC43. Whole-mount immunofluorescence staining of a whole E16 mouse pancreas, with the spleen, stomach and duodenum intact, enabling further investigation of the anatomical characteristics in pancreatic development and disease. The tissue was imaged using a confocal microscope by tiling and processed using Imaris. Image courtesy of Cedric Yu, PhD, University of California, San Francisco.

Exploring Benchtop Fluorescence Microscopes

Learn more about the key technologies, components and practical considerations involved in selecting a benchtop fluorescence microscope.

Imaging ModesImaging Modes

Sample StageSample Stage

IlluminationIllumination

Filters and MirrorsFilters & Mirrors

ObjectivesObjectives

DetectorsDetectors

Vibration and Environmental ControlVibration & Environmental Control

SoftwareSoftware

Quality Control, Upgradability, and ServiceQuality Control, Upgradability & Service

BC43 – Exceptional Performance, Certified Quality, High Productivity

BC43 is a fully digital, enclosed microscope with an inverted beam path. It enables intuitive sample navigation using a 2x objective, while the integrated high-QE sCMOS camera supports sensitive and fast imaging across a wide magnification range, including high-magnification imaging up to 100x
